Baikonur’s museum

This museum is located in the area n°2 of the Baikonur cosmodrome. It’s one of the oldest area (the area 1 is the Gagarin’s launch pad) near the former assembly factories of the Vostok and Soyuz rockets.

The museum has a lot of impressive pieces. Numerous rocket engines, Soyuz capsule, the first computers of Baikonur and the Buran test model OK-M.

Baikonur museum Baikonur museum Baikonur museum
The visit begins by the ground floor, once going through the entry hall, and near the cafeteria and the small souvenir shop we arrive in a big room divided in small areas by panels.

At the rear of the room is a big model of the cosmodrome with a sputnik over it.

Cosmodrome model Cosmodrome model Cosmodrome model Sputnik

This engine is surrounded by orientation thrusters. DZZ system (infrared orientation system).

Engine DZZ system

Some models.
First picture: The four main Soviet/Russian launchers, the Soyuz, the Proton, Energia and the lunar rocket the N1.
Second picture: A proton rocket.
Third picture: An antenna with a radio receiver.
Fourth picture: A missile silo.
Fifth picture: Reward model.

Models Proton Tracking antenna Missile silo Model

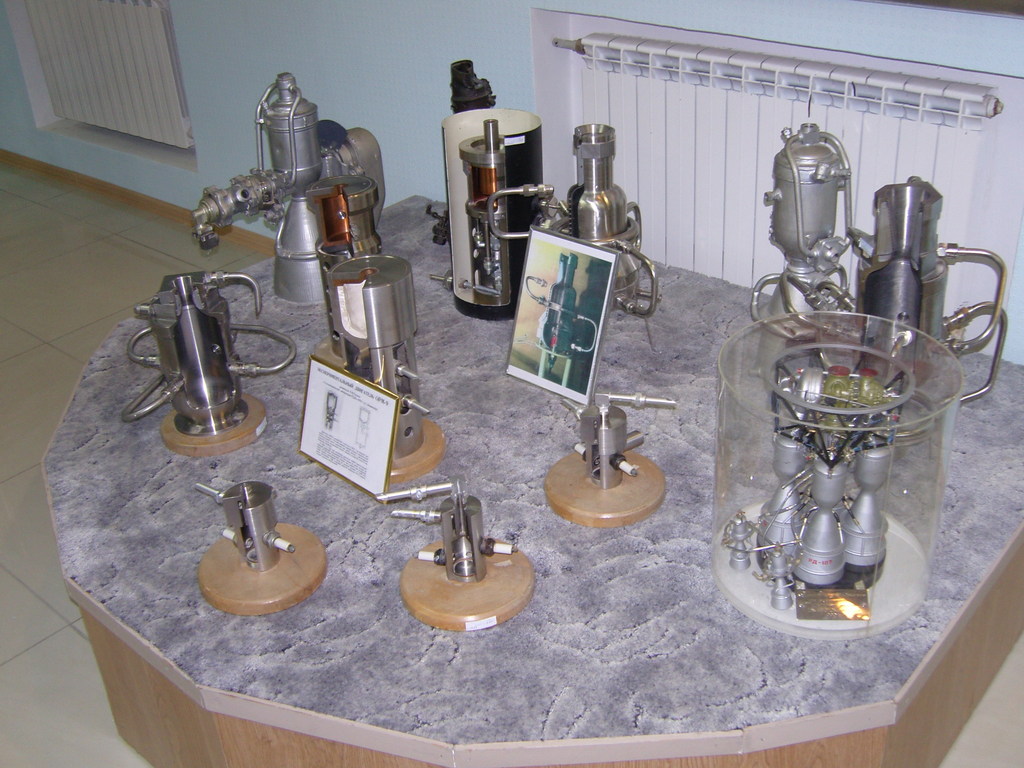

A lot of Soyuz’s rocket thruster, and a model of the RD-107 engine (engine of the lateral boosters).

Thrusters Thrusters

Globe, the Baikonur’s cosmodrome is located at the wrong place (300 km norther). This decision to name the cosmodrome with the same name of another town was to misinform the American spy services.

Globe

Tracking antenna.

Tracking antenna

The rest of the visit take place upstairs.

Reward flag

A room is dedicated to the two main personalities of the Soviet space program: Sergei Korolev and Valentin Glushko.

Korolev Show window Show window Reward medals

Model of the Gagarin’s launch pad made in 1957.

Launch pad

In another room are exhibited more larger pieces. The first computers and consoles of the cosmodrome, a Soyuz capsule, spacesuits, …

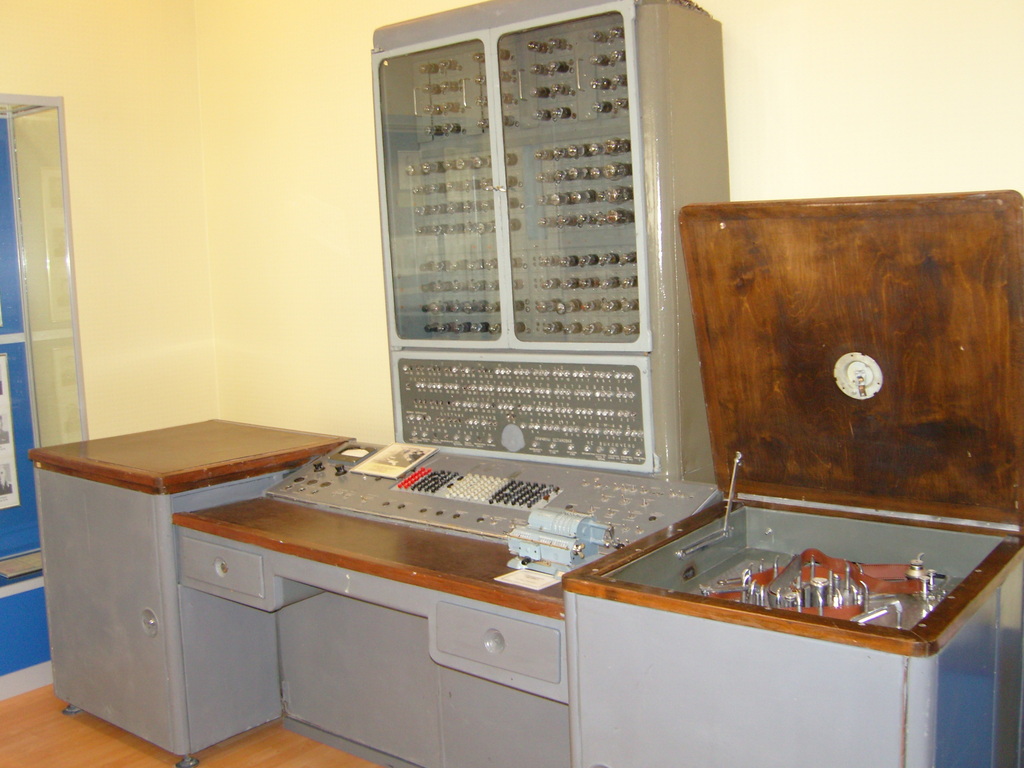

The first Baikonur’s computer.

Computer

Some control consoles.
Second picture: Rocket start console (the ignition key is positioned in the middle).
Third picture: Docking Soyuz/Progress simulator.

Console Console Console Console

Console

First picture: Gyroscope ChZOO.
Second picture: Suborbital capsule for animals.
Third picture: Binnacle for Laika dog.

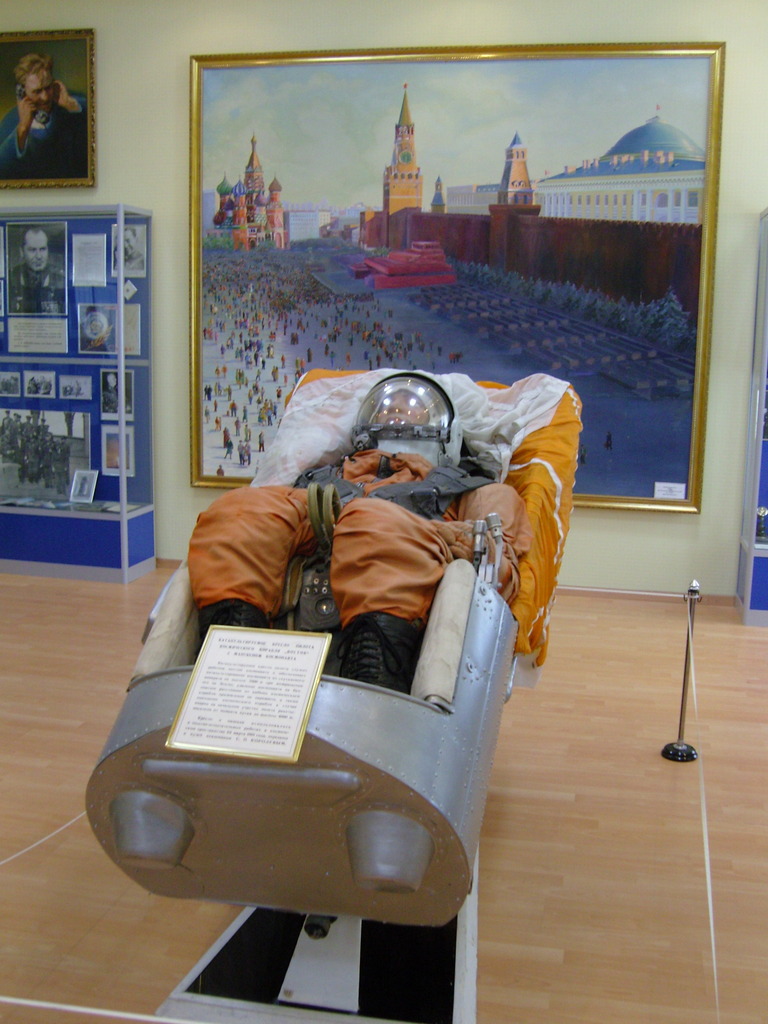

Fourth picture: Ejection seat of the Vostok spacecraft.

Gyroscope Capsule Laïka Ejector seat

Room

Re-entry Soyuz capsule.

Soyuz

Finally, the last room is dedicated to other country’s rewards.

France gift

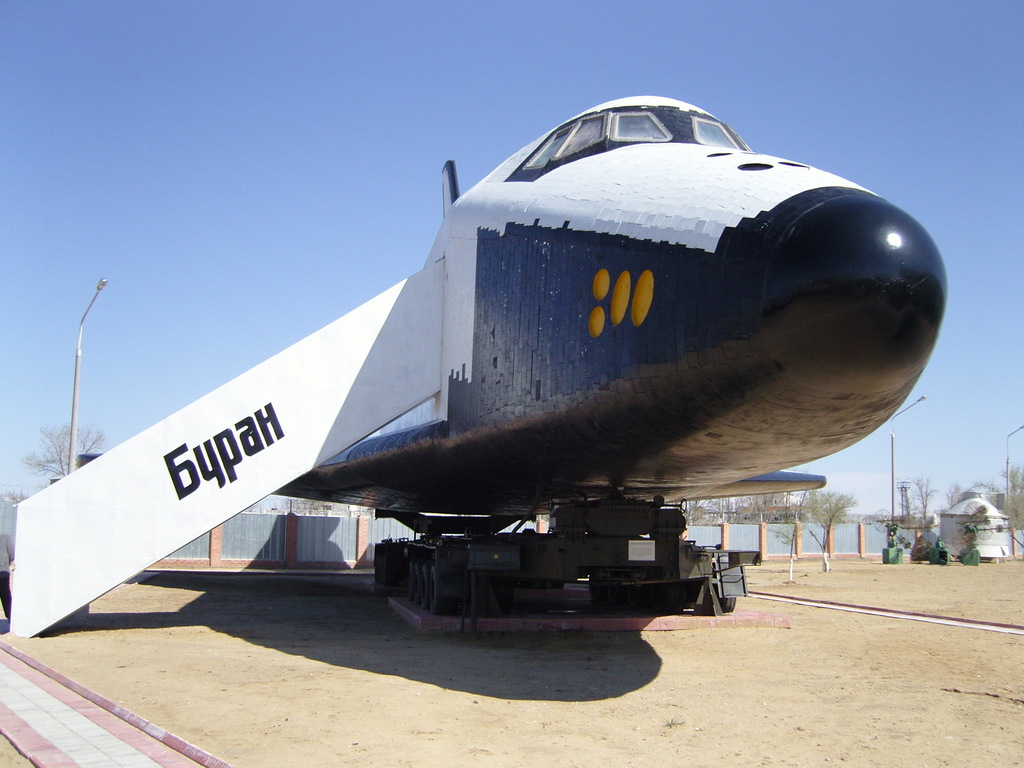

Outside is the Buran OK-M test shuttle, an RD-0120 engine and antennas.

Buran OK-M

Buran OK-M Buran OK-M Buran OK-M Buran OK-M

Engine RD-0120. This engine was used for the second stage of the Energia launcher. It delivers a thrust of 190 tf in vacuum.

RD-0120 RD-0120

Tracking antennas.

Antennas

The payload bay of Buran was layed out in an exhibition room.

Payload bay

Satellite model.

Satellite Satellite Satellite Satellite

Part of the Buran’s VSU (Auxiliary power unit).

VSU VSU

Kurs antenna for the docking of the shuttle to the MIR space station.

KURS antenna KURS antenna

Show window with many pieces. Documents and photographies of the Baikonur construction, Buran’s heat shield tiles, a piece of the thermal protection of the payload bay and different kind of documents.

Baikonur construction Documents Documents Couverture thermique

Documents Documents
Graphic of preparation for the flight of Energia-Buran.

Preparation

Heat protection of the breaking parachute housing.

Heat shield

Orientation thruster.

Thruster

Airlock door.

Airlock door Airlock door

Lower deck reorganised as a showing room.

Lower deck Lower deck

Porthole.

Porthole

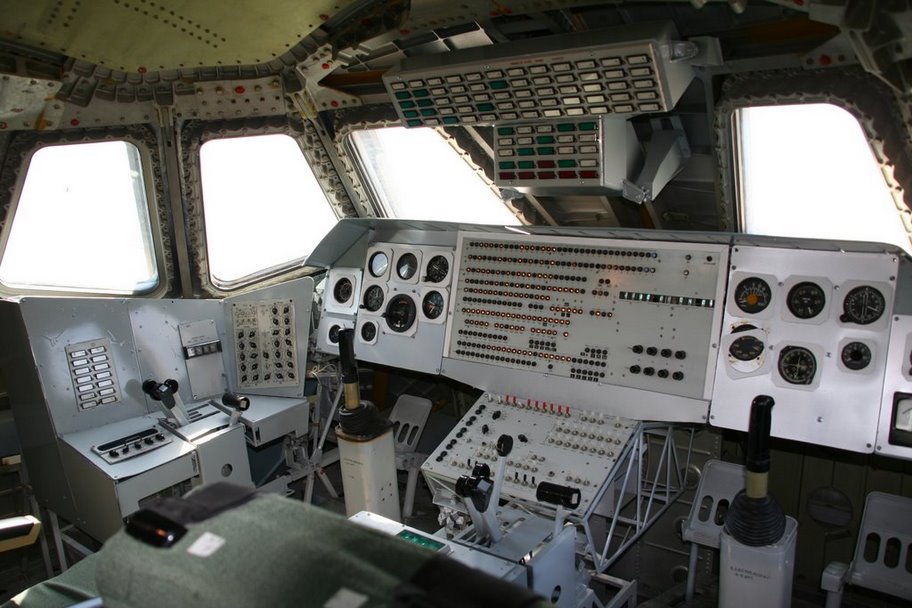

Upper deck. This shuttle was a test model, the cockpit wasn’t working, the dashboard here is fictive and is not the one of Buran.

Cockpit
